CXD 3600 Quick Start Guide

View the steps below to prepare for your CXD 3600 installation.

View the steps below to prepare for your CXD 3600 installation.

Get Started
Step Intro
Please review the following steps to become familiar with the installation process. Do not proceed until your scheduled installation appointment.
Step 1
Step 1

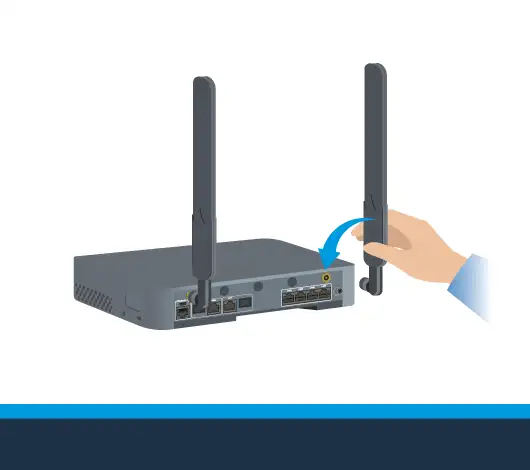

Attach the
two antennas.
Step 2
Step 2

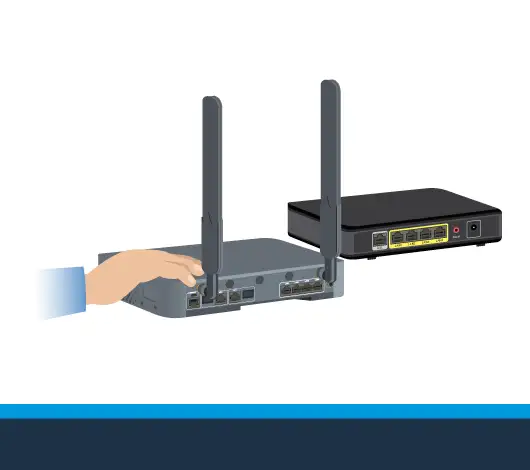

Place the CXD edge
security device near the
internet service provider’s
router / modem.
Step 3
Step 4

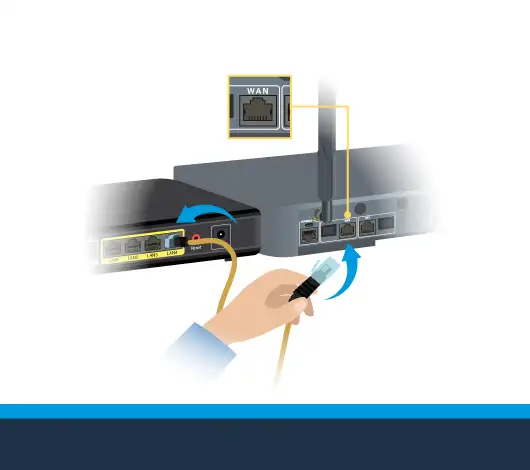

Connect the cable from the
internet modem LAN port to the
CXD edge security device
WAN port.
Step 4
Step 3

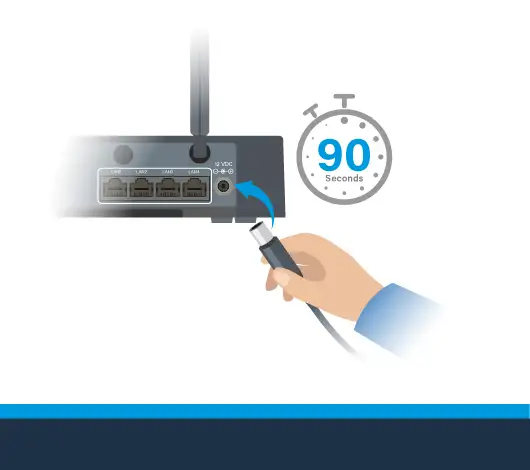

Connect the power cord,
wait 90 seconds for the
device to power on
(two LEDs will remain on).
Step 5
Step 5

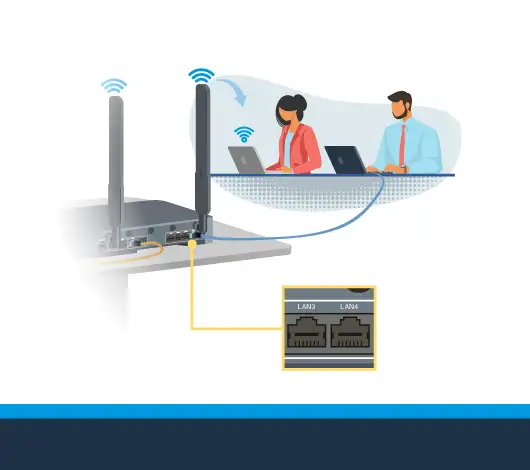

Connect your network device to
the CXD by plugging into
either LAN port or
via Wi-Fi.
Contact Us
Step 6
If you have any questions or concerns regarding the installation process, please call 800-559-8157 or email us at techsupport@acumera.com.

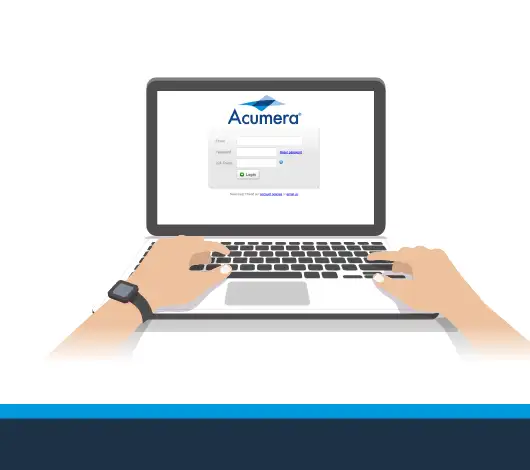

The User Guide may be found in the lower left corner of any BranchSDO Orchestrator screen and will help you configure your CXD Edge Security Device’s parameters, security, and system settings.

Please note: An active subscription is required to log in to BranchSDO CXD Orchestrator.
